Yağ Kanallı Ovalama Kılavuz HSS-E / Açık-Kör Delik / ISO 2X (6HX) / Form C
P M K N S H
● ● ● ● ● ●
Form İkonu Form İkonu Material Groups İkonu Coating İkonu Tolerance İkonu Cooling İkonu Cutting Direction İkonu Tool Material İkonu Tool Type İkonu Through İkonu Blind İkonu

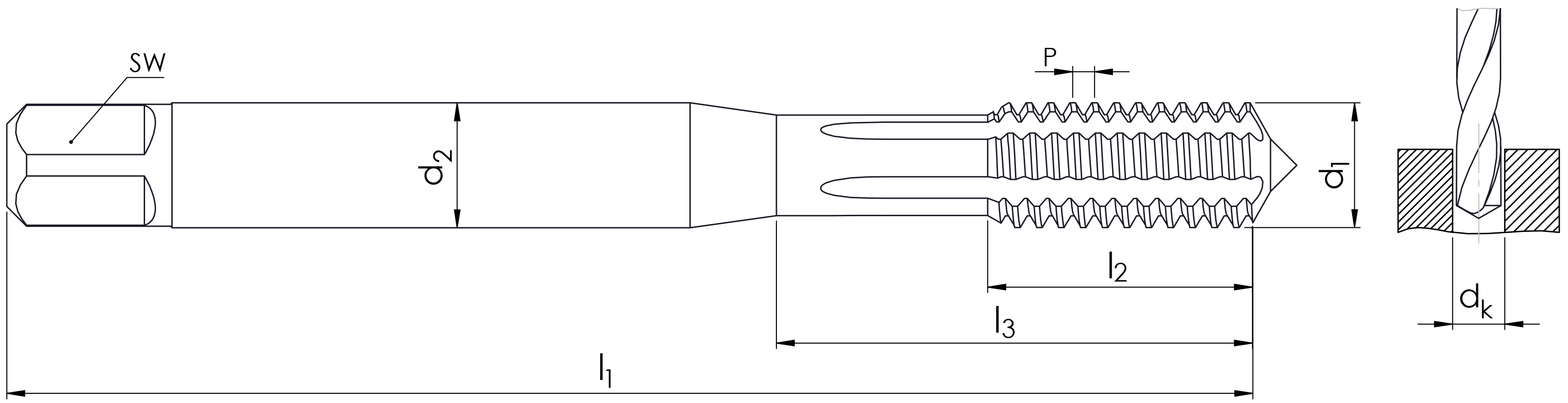

d1 Kare Genişliği (SW) Şaft Çapı (d2) Tam Uzunluk (L1) Diş Uzunluğu (L2) Kanal Uzunluğu Diş Adımı (P) Delik Çapı Standart
M04x0.50 2,10mm 2,80mm 63,00mm 8,00mm 13,50mm 0,50mm 3,80mm DIN 374
M05x0.50 2,70mm 3,50mm 70,00mm 10,00mm 17,50mm 0,50mm 4,80mm DIN 374
M06x0.50 3,40mm 4,50mm 80,00mm 13,00mm 24,00mm 0,50mm 5,75mm DIN 374
M06x0.75 4,90mm 6,00mm 80,00mm 13,00mm 24,00mm 0,75mm 5,65mm DIN 374
M08x0.75 4,90mm 6,00mm 80,00mm 14,00mm 25,00mm 0,75mm 7,65mm DIN 374
M08x1.00 4,90mm 6,00mm 90,00mm 17,00mm 28,00mm 1,00mm 7,55mm DIN 374
M10x0.75 5,50mm 7,00mm 90,00mm 16,00mm 27,00mm 0,75mm 9,65mm DIN 374
M10x1.00 5,50mm 7,00mm 90,00mm 16,00mm 27,00mm 1,00mm 9,55mm DIN 374
M10x1.25 5,50mm 7,00mm 100,00mm 20,00mm 31,00mm 1,25mm 9,40mm DIN 374
M12x1.00 7,00mm 9,00mm 100,00mm 20,00mm 31,00mm 1,00mm 11,55mm DIN 374
M12x1.25 7,00mm 9,00mm 100,00mm 20,00mm 31,00mm 1,25mm 11,40mm DIN 374
M12x1.50 7,00mm 9,00mm 100,00mm 20,00mm 31,00mm 1,50mm 11,30mm DIN 374
M14x1.00 9,00mm 11,00mm 100,00mm 20,00mm 31,00mm 1,00mm 13,55mm DIN 374
M14x1.25 9,00mm 11,00mm 100,00mm 20,00mm 31,00mm 1,25mm 13,40mm DIN 374
M14x1.50 9,00mm 11,00mm 100,00mm 20,00mm 31,00mm 1,50mm 13,30mm DIN 374
M16x1.00 9,00mm 12,00mm 100,00mm 22,00mm 33,00mm 1,00mm 15,55mm DIN 374
M16x1.50 9,00mm 12,00mm 100,00mm 22,00mm 33,00mm 1,50mm 15,30mm DIN 374
M18x1.00 11,00mm 14,00mm 110,00mm 25,00mm 36,00mm 1,00mm 17,55mm DIN 374
M18x1.50 11,00mm 14,00mm 110,00mm 25,00mm 36,00mm 1,50mm 17,30mm DIN 374
M18x2.00 11,00mm 14,00mm 125,00mm 30,00mm 41,00mm 2,00mm 17,10mm DIN 374
M20x1.00 12,00mm 16,00mm 125,00mm 25,00mm 36,00mm 1,00mm 19,55mm DIN 374
M20x1.50 12,00mm 16,00mm 125,00mm 25,00mm 36,00mm 1,50mm 19,30mm DIN 374
M22x1.50 14,50mm 16,00mm 125,00mm 25,00mm 36,00mm 1,50mm 21,30mm DIN 374
M22x2.00 14,50mm 18,00mm 140,00mm 32,00mm 43,00mm 2,00mm 21,31mm DIN 374
M24x1.00 14,50mm 18,00mm 140,00mm 28,00mm 39,00mm 1,00mm 23,55mm DIN 374
M24x1.50 14,50mm 18,00mm 140,00mm 28,00mm 39,00mm 1,50mm 23,30mm DIN 374
M24x2.00 14,50mm 18,00mm 140,00mm 28,00mm 39,00mm 2,00mm 23,10mm DIN 374
